Pittman Offers a Full Range of DC Micromotors

By DE Editors

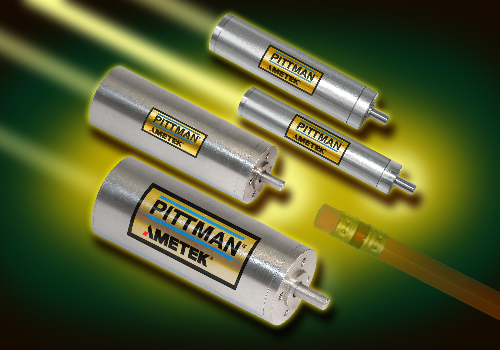

Pittman Motors now offers high-performance,  slotless brushless DC motors for medical applications, such as high-speed surgical tools, dental tools, medical instruments, and other small medical devices.

In addition to their small size, the miniature motors are capable of very high speeds, produce little or no EMI emission (electromagnetic interference), provide long life, and have low audible noise, the company says.

In addition, the slotless design eliminates magnetic cogging. The stator teeth are completely eliminated by forming and encapsulating the entire stator winding along the inside surface of the back iron.

The smallest high-performance motor is 0.375 in. (9.53mm) with a maximum speed of up to 70,000 RPM and a torque rating of up to 0.3 oz-in (0.002Nm). Overall length is 2 in. (50.8mm). The motor has a two-pole permanent magnet rotor, a three-phase stator and sensorless commutation.

Larger diameters in the high-performance line include 0.5 in. (12.7mm),  0.8 in. (20mm), and 1.1 in. (28mm). Maximum speeds are available up to 60,000 RPM and torque ratings from 0.9 oz-in (0.006Nm) to 14.9 oz-in (0.105Nm). Each diameter has two available stack lengths.

The motors are constructed using four pole rotors, three phase stators,  and integral hall sensor feedback spaced for 120 electrical degrees. Standard features for the high-performance DC motor offering include shielded ball bearings, stainless steel construction and high-energy neodymium rotor magnets. Permanent magnet rotors are balanced for smooth and quiet operation at high speeds. Autoclavable versions are available in all motor sizes.

For more information, visit Pittman Motors.

Sources: Press materials received from the company and additional information gleaned from the company’s website.
