Creaform Unveils the CUBE-R M Series

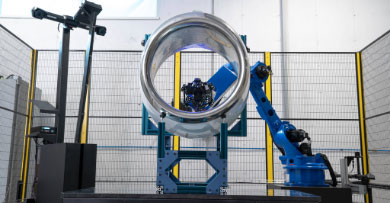

Creaform, a business of AMETEK, Inc. and provider of automated and portable 3D measurement solutions, has launched the CUBE-R M Series. This modular solution leverages the MetraSCAN 3D-R scanner in an automated 3D measurement cell and offers three standard configurations to accommodate part sizes. Various options ensure integration into any production environment.

This turnkey industrial measuring cell adapts to any shop floor and any requirements. The M2 inspects parts up to 2 m in length, the M3 handles parts up to 3 m and the M4 supports parts up to 4 m.

The CUBE-R delivers continuous measurements and accuracy, even in vibrating environments and on difficult surfaces, by leveraging hardware-software synergy for smart offline programming, high-frame-rate full-field 3D data, and rapid cycle times through parallel processing, according to the company.

The M Series offers a range of configurable options for diverse manufacturing environments:

• Metrology-grade 3D scanning capability: The MetraSCAN-R BLACK+ |Elite HD uses its 69 blue laser lines to deliver an accuracy of 0.025 mm (0.0009 in), 3,000,000 measurements/s and a measurement resolution of 0.015 mm (0.0006 in).
• Productivity Kit: Tthis kit enables uninterrupted scanning workflows by parallelizing inspection and processing activities.
• Removable Mounting Plates: This forklift-compatible kit offers optional pallets so parts and jigs can be preloaded outside the measuring cell.
• Virtek Iris 3D positioning system: This kit uses projected laser-guided patterns for precise alignment and accurate parts and jigs positioning.
• Secure Remote Access Kit: This kit includes connectivity tools that enable Creaform’s technical support team to remotely troubleshoot the CUBE-R.
• Dedicated sheet metal solution: Combining the specialized Sheet Metal Add-on in the Inspection module and the MetraSCAN 3D-R HD, this kit delivers repeatable 3D sheet metal measurements.
• Automation module: The digital twin environment module of Creaform Metrology Suite prioritizes ease of use and performance.

“We believe quality control should drive production, not slow it down,” says Mathieu Desmarais, product manager at Creaform. “With the M-Series’ modular design, manufacturers benefit from turnkey yet tailored solutions that scale with their needs, maximizing throughput, system uptime, and accelerating the journey toward 100% inspection and zero defects, while staying future-proof for evolving manufacturing needs.”
