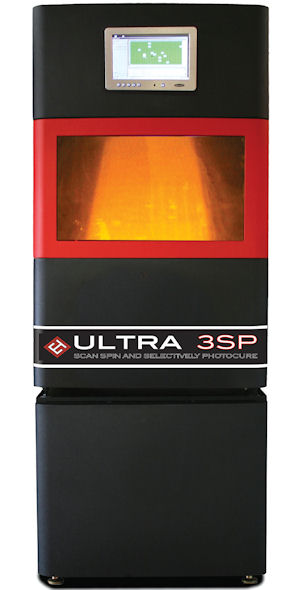

Scan, Spin and Selectively Photocure with the ULTRA® 3SP™

What’s Cool

EnvisionTEC’s 3SP™ technology allows for the high speed 3D printing of large end-use parts which are stable and durable with excellent surface quality that requires minimal to no post-processing. The surface quality of the printed models show no signs of stair-stepping on the inner and outer surfaces.

"The 3SP™ technology employed by the ULTRA® 3SP™ provides the same high quality results as our flagship DLP process on a larger scale with faster build speeds. The ULTRA® 3SP™ is an excellent solution for anyone who needs to 3D print larger parts quickly without sacrificing resolution or surface quality."

— Al Siblani, CEO of EnvisionTEC

Who’s It For

Professional designers and manufacturers across a broad range of applications ranging from aerospace and automotive to sporting goods, electronics and toys.

Compatible Materials

Proprietary high temperature materials for molding, ABS plastic type materials for rigid and stable models and clear materials with superior mechanical properties.

Specs

• Dimensions: 28 x 30 x 46 in. with an optional stand measuring 29 x 30 x 25 in.

• Maximum Build size: 266 x 175 x 193 mm

• Resolution in X and Y: 100 µm (also available in a High Definition model capable of 50µm resolution in X and Y)

• Dynamic Voxel Resolution in Z: 25-100 µm (user adjustable and material dependent)

• Acceptable input format: STL

• Network Connectivity: Yes

• Power requirements: 100-127 VAC, 50/60 Hz, single phase, 8A; or 200-240 VAC, 50 Hz, single phase, 4A

• Workstation OS Compatibility: Windows 7

For more information visit: http://envisiontec.com/3d-printers/ultra-3sp-family

http://envisiontec.com/3d-printing-technologies-overview/#3SP
