CyRAQ Panel PCs with Core 2 Duo or Quad CPUs

By DE Editors

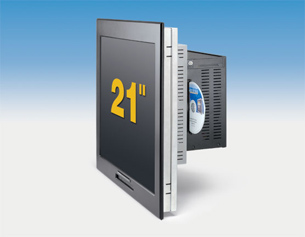

The new CyRAQ Series E panel PCs from CyberResearch, Inc. (Branford, CT) now include screen sizes from 12-in. to 24-in. in three different motherboards, and three different CPUs. For compute-intensive jobs, the company offers an Intel 2.4GHz Core 2 Quad CPU; for the mid-range, it offers a 2.1GHz Core 2 Duo CPU, and for basic jobs a 1.2GHz Celeron CPU.

Most industrial panel PC systems are rugged, but they tend to use an older generation of slower processors. CyberResearch says it retained the ruggedness with stainless-steel front bezels and NEMA 4X sealing (when properly mounted), while using the latest, most powerful processors. All-steel chassis stand shocks up to 30g, and forced-air cooling allows operation up to 122 degrees F.

Monitor brightnesses range from 300 to 1850 nits, and analog-resistive touchscreens are optional on all monitors. Optional CyberResearch AR-Bonding treatment reduces troublesome screen reflections on any monitor by a factor of 40. Other features on various models include 160- or 320GB hard drives, dual drives or RAID, gigabit Ethernet LAN ports, one or two PCI expansion slots, 512MB or 1GB RAM. Some models can be equipped with wi-fi LAN cards and antennas.

In addition to CyRAQ Series E panel PCs, CyberResearch offers rugged industrial PCs and monitors, CPU cards, data acquisition, and motion control.

For more information, contact CyberResearch, Inc.

For previous DE coverage, see “PXI Line Suited for Industrial Control,” (Aug 2008).

Sources: Press materials received from the company and additional information gleaned from the company's website.
