Measurement Computing Announces Products for PC-based DA and Control

By DE Editors

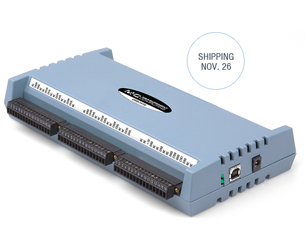

The USB-2416 for TC or voltage.

Measurement Computing (Norton, MA) announced four new products for PC-based DA and control: the USB-2416 (and USB-2416-4AO), the USB-3101FS, the USB-501-TC, and USB-2404-10 (and USB-2404-60).

With 24-bit high-channel-count USB modules for thermocouples or voltage, the USB-2416 ($1099) and USB-2416-4AO ($1299) offer instrument class accuracy for up to 32 SE/16 DI analog input channels. Each module features a 1kSps sample rate, analog voltage ranges from ±0.078 V to ±20 V, and open thermocouple detection. The USB-2416-4AO also includes four 16-bit, 1KSps analog outputs.

The USB-3101FS is a four-channel 100kSps analog output module ($499) that features four, 16-bit, simultaneously updated analog outputs at 100kSps each. 250Vrms channel-to-channel and channel-to-ground isolation protects the module and computer from ground spikes, and ensures a reliable data stream.

The USB-501-TC is a pocket-sized single-channel thermocouple (TC) data logger ($82) that provides an easy and inexpensive way to remotely log thermocouple data, says the company. The USB interface allows you to quickly download and view data from up to 32K measurement points.

And the USB-2404-10, 24-bit, simultaneous-sampling analog input modules are small and portable USB-2404-10 ($999) and USB-2404-60 ($1099) that offer four, 24-bit analog inputs with a ±10V or ±60V range with sample rates up to 50kSps per channel. Anti-aliasing filters and 250Vrms channel-to-channel and channel-to-ground isolation are also provided.

For details, please contact Measurement Computing Corp.

Sources: Press materials received from the company and additional information gleaned from the company’s website.
