Oscilloscope Certified by the LXI Consortium

By DE Editors

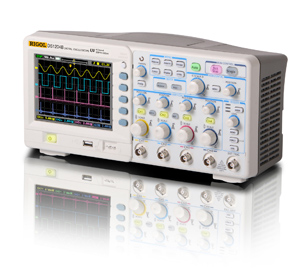

Saelig (Pittsford,  NY) says the DS1000B from RIGOL Technologies is the first oscilloscope series in their class to be certified by the LXI Consortium, providing the flexibility of over-the-web programming and the confidence of rigid industry-specification capabilities.

With up to 2GSa/s (giga samples per second) real-time sample rate, 50GSa/s equivalent sample rate and bandwidths from 60MHz up to 200MHz,  these scopes achieve a totally new price-to-performance level.

One-touch automatic setup makes DS1000B series easy to use and DS1000B scopes incorporate a custom-designed proprietary ASIC front-end that eliminates traditional mechanical relays to guarantee superior performance with longer life. DS1000B scopes provide the most complete I/O capabilities in their class, including LAN, USB and USB host(x 2), which even supports flash memory.

DS1000B scopes offer Logic Triggering across all four channels, while Alternate Triggering provides a true dual time-base solution,  and sophisticated triggering modes (edge/video/pulse width/slope/alt) enable users to stabilize signals quickly. Also included is a built-in FFT function,  and more.

DS1000Bs have a small footprint of only 12-in. x 6-in. x 5.25-in. and weigh only 5 lbs., making them suitable for any test bench. USB-connectivity supports useful storage and printing capabilities, as well as enabling future firmware upgrades.

Manufactured by RIGOL Technologies, DS1000B scopes are available from Saelig Co., Inc., which is RIGOL Technologies’ North American distributor.

Sources: Press materials received from the company and additional information gleaned from the company’s website.
